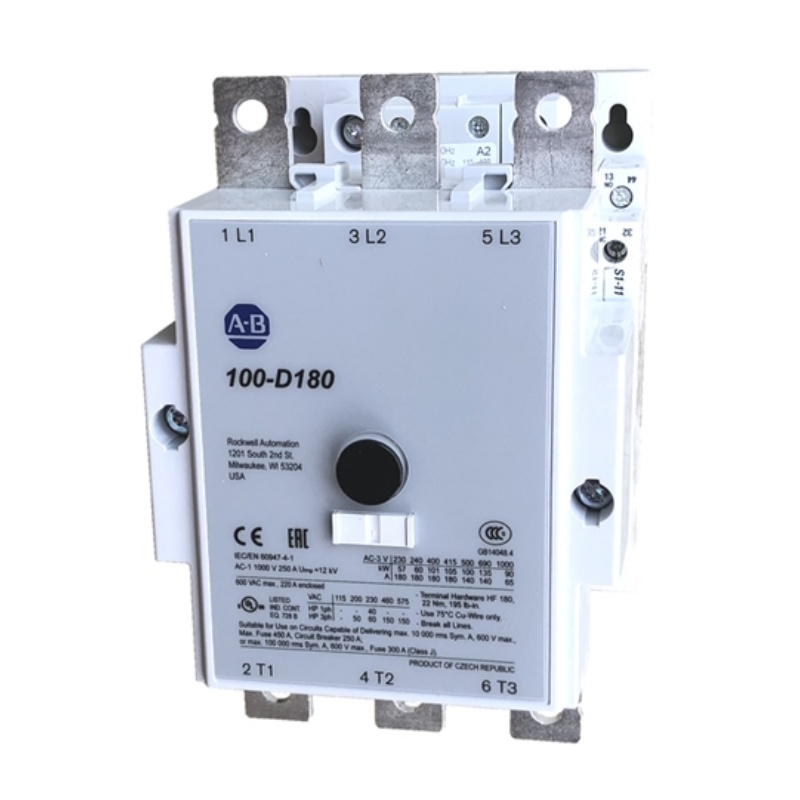

100-D180 ALLEN BRADLEY Contactor

Categories Allen-Bradley, MODULE Tag 100-D180

100-D180 ALLEN BRADLEY Contactor

MOQ: 1 PCS
Warranty: 1 year
Delivery time: 3-5 days
Shipping method: FedEx/DHL/UPS/TNT
Payment method: TT/Western Union

Description

Voltage type for actuating	AC/DC
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	110 V
Rated control supply voltage at DC	110 V
Type of electrical connection of main circuit	Screw connection
Rated impulse withstand voltage (Uimp)	12 kV
Current (Ie), max	180 A
Optional overload relays	Electronic
Current rating	115 A

Width	255 mm
Height	337.5 mm
Depth	266.25 mm
Single contactor cover	IP10 IEC 60529/DIN 40050
Contactor with frame terminal block	IP20 IEC 60529/DIN 40050

rame terminal block conductor cross section, b max	20 mm
Frame terminal block conductor cross section, s top	3 mm
Frame terminal block conductor cross section, s bottom	3 mm
Screw terminals	Thru-hole
Conductor cross section, top opening	16 mm²
Conductor cross section, bottom opening	16 mm²
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Cross section per UL/CSA	6…300 MCM
Lifespan	Mechanical DC control: 10000000 ops
Switching frequency, max	100 ops/h
Recommended torque	88 to 106 lb.in
Weight	Non-reverse (Electronic-EI coil type): 3.8 kg @ DC
Conductor cross section	Main contact, s maximum: 5 mm
Protection class	IP00 IEC 60529/DIN 40050
