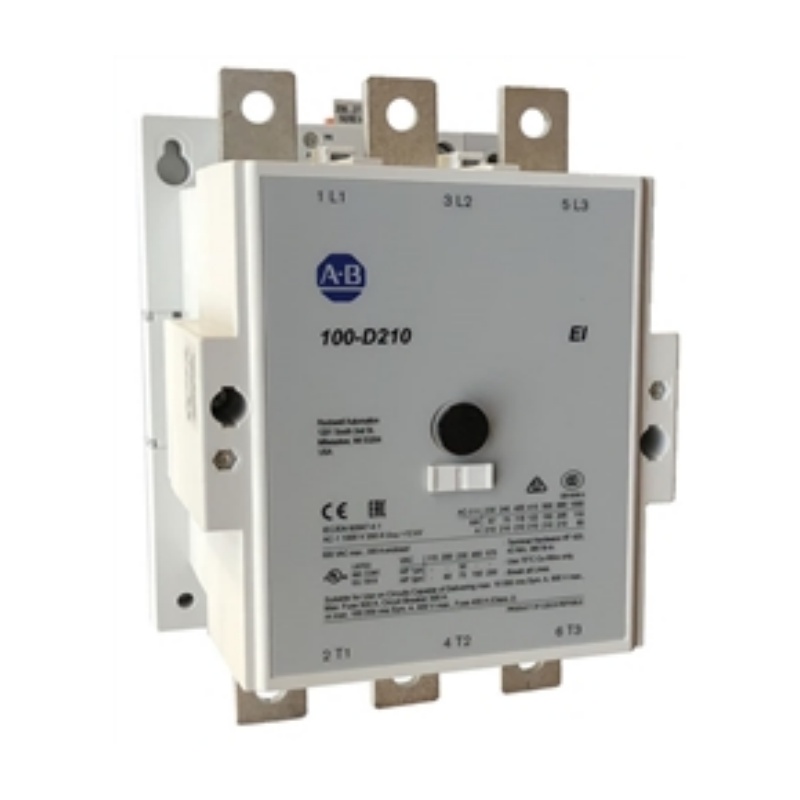

100-D210 Allen Bradley contactor

Categories Allen-Bradley, MODULE

100-D210 Allen Bradley contactor

MOQ: 1 PCS
Warranty: 1 year
Delivery time: 3-5 days
Shipping method: FedEx/DHL/UPS/TNT
Payment method: TT/Western Union

Description

Voltage type for actuating	AC/DC
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	110 V
Rated control supply voltage at DC	110 V
Type of electrical connection of main circuit	Screw connection
Rated impulse withstand voltage (Uimp)	12 kV
Current (Ie), max	210 A
Optional overload relays	Electronic
Current rating	115 A

Frame terminal block conductor cross section, b max	25 mm
Frame terminal block conductor cross section, s top	6 mm
Frame terminal block conductor cross section, s bottom	6 mm
Screw terminals	Thru-hole
Conductor cross section, top opening	25 mm²
Conductor cross section, bottom opening	25 mm²
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Cross section per UL/CSA	4 AWG…600 MCM @ top
Lifespan	Mechanical DC control: 10000000 ops
Switching frequency, max	120 ops/h
Recommended torque	43 Nm
Weight	Non-reverse: 7.5 kg @ DC
Conductor cross section	Main contact, s maximum: 6 mm
Protection class	IP00 IEC 60529/DIN 40050
